The most powerful model ever designed by ELECTRIC MOTION has pure performance!
EM has designed a new engine offering inertia, torque (1400Nm) and power (up to 18kW) simply unmatched in trials! The arrival of the 4-speed gearbox offers unlimited possibilities in both areas - trials and excursion.
The battery is 100% new and has been designed by our very own engineering department. With new-generation Li-Ion, the performance and lifespan of the battery exceeds all possible expectations.
In addition, there's now a brand new long-range 2500Wh version... in the same size battery case!
The bike offers a pre-programmed mapping system but is also 100% customizable with EM Connect. The Epure FACTOR-e is accessible to everyone!
$100 worth of FREE merch with every bike (while stocks last)
12 month warranty on all new bikes
85
Max speed: km/h
50
Max range: km
75
Weight: kg
1400
Torque: Nm

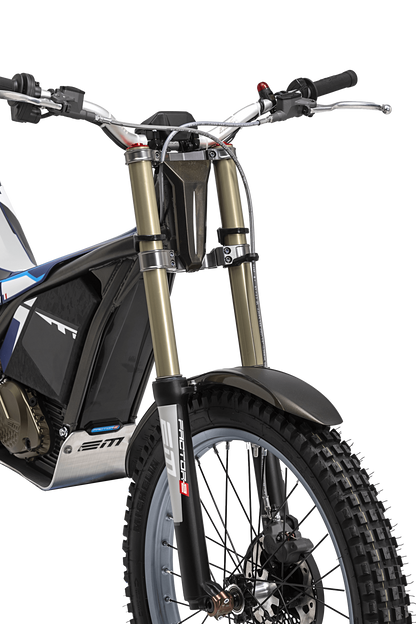

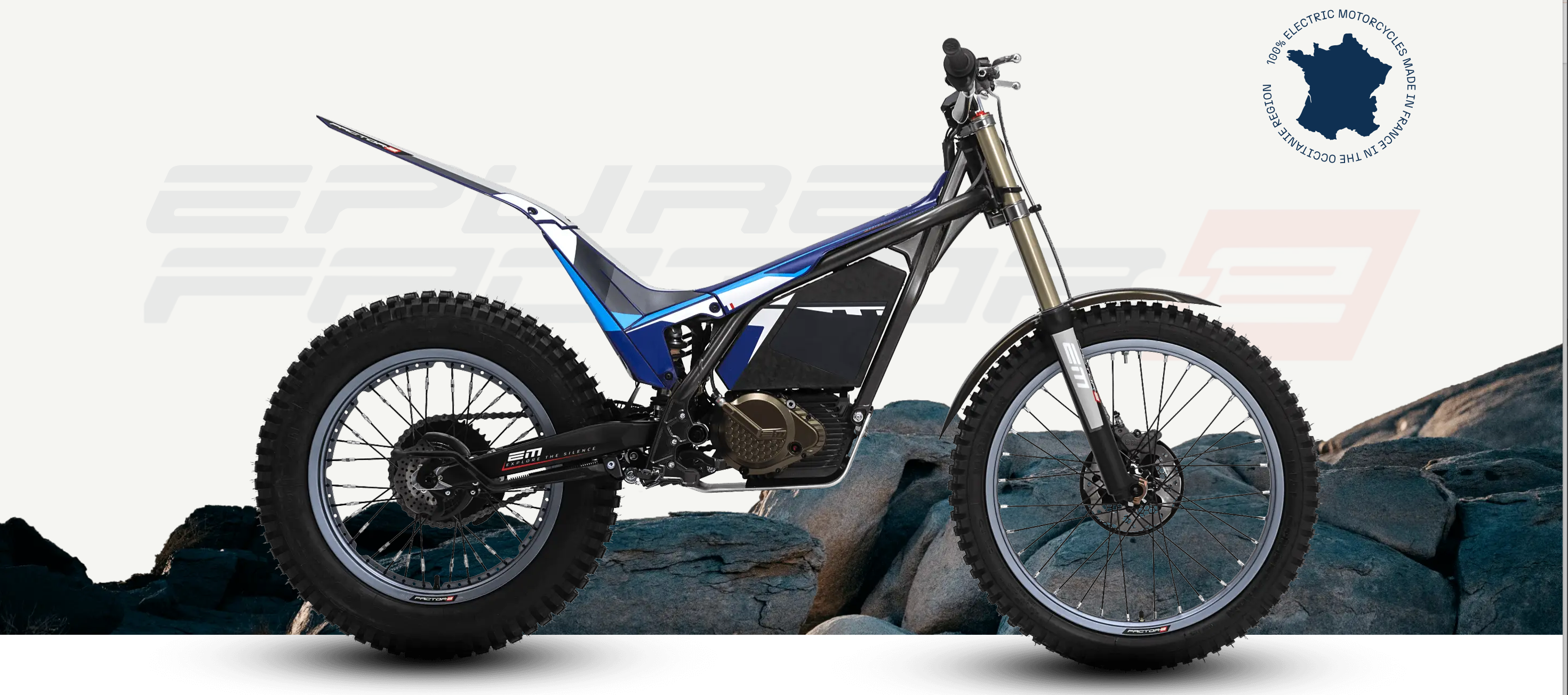

The Epure FACTOR-e is here
It all started in ELECTRIC MOTION’s R&D department.
After 15 years of exquisite experience in electric propulsion in the off-road sector and more specifically in trials, our ambition was to offer 'THE' trial bike of the market.
The origins of this powertrain date back to 2021. Since then, our engineering teams and Marc COLOMER in particular, have been working hard designing, testing, improving, optimizing and enhancing the reliability of this brand-new powertrain.
Marc COLOMER, former Trials World Champion, is in charge of bike development working closely with EM's expert design engineers.
3 years of research, data analysis, laboratory tests, trials on different tracks, tested by riders of all levels right up to the very highest... everything has been done to design the best trial powertrain unit ever made.
For EM, this propulsion had to be the most efficient at the highest level but also the most accessible, and only electric power can achieve this.
Product details

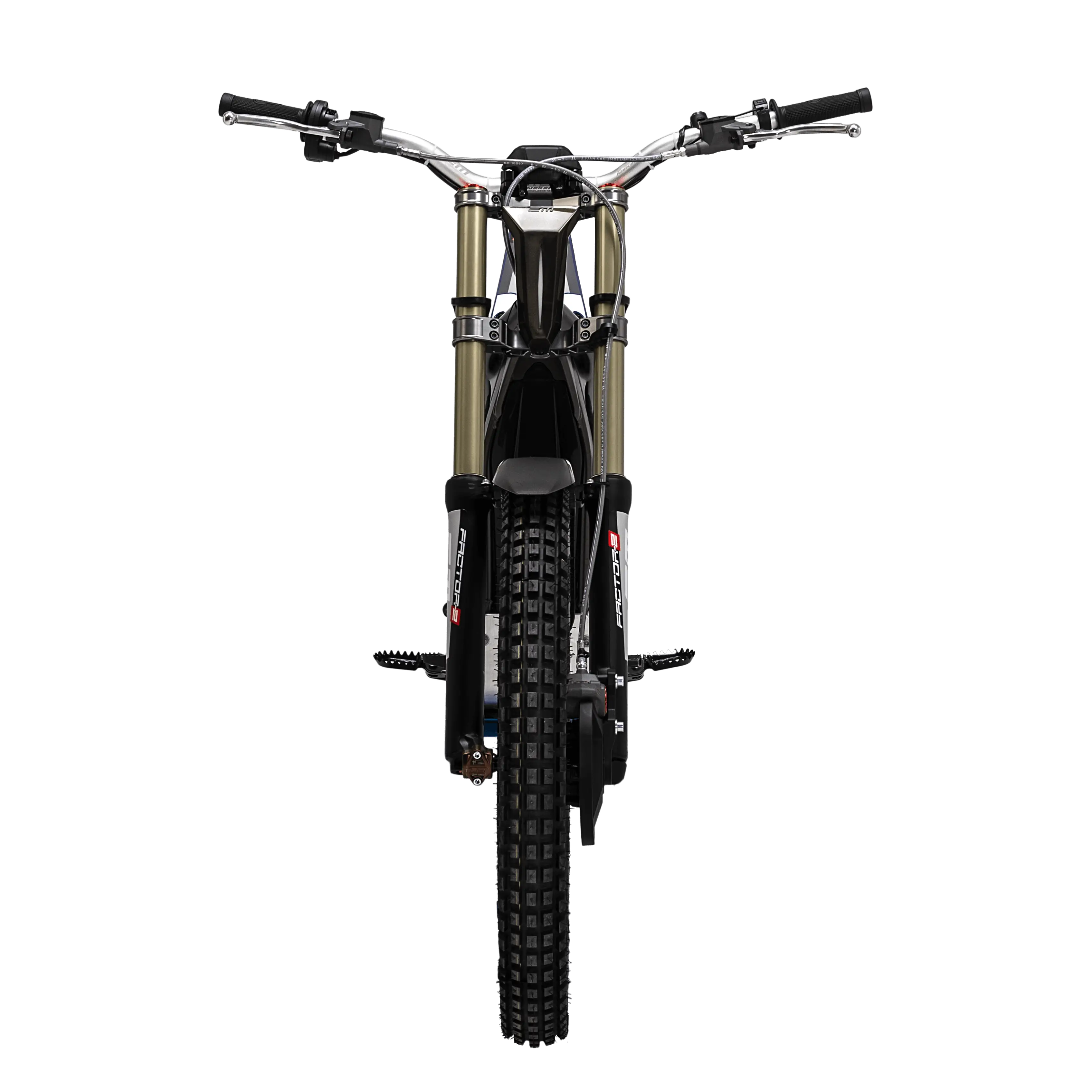

2 versions - 1.8 & 2.5
Epure FACTOR-e 1.8 / Epure FACTOR-e 2.5
Are you an excursion enthusiast? There's now a long-range version in 2500Wh... all in the same battery case! This new battery offers a 35% increase in autonomy over the standard while retaining the same power!
Epure FACTOR-e 1.8:- Adapted to the practice of trial thanks to a 2kg weight saving on the front end.- Delivered power is the same as the 2.5kWh battery.
Epure FACTOR-e 2.5:- Designed for trial and excursion, this version offers over 35% more range.
The Epure FACTOR-e 2.5 is 3kg lighter than our Epure Race model (2024).

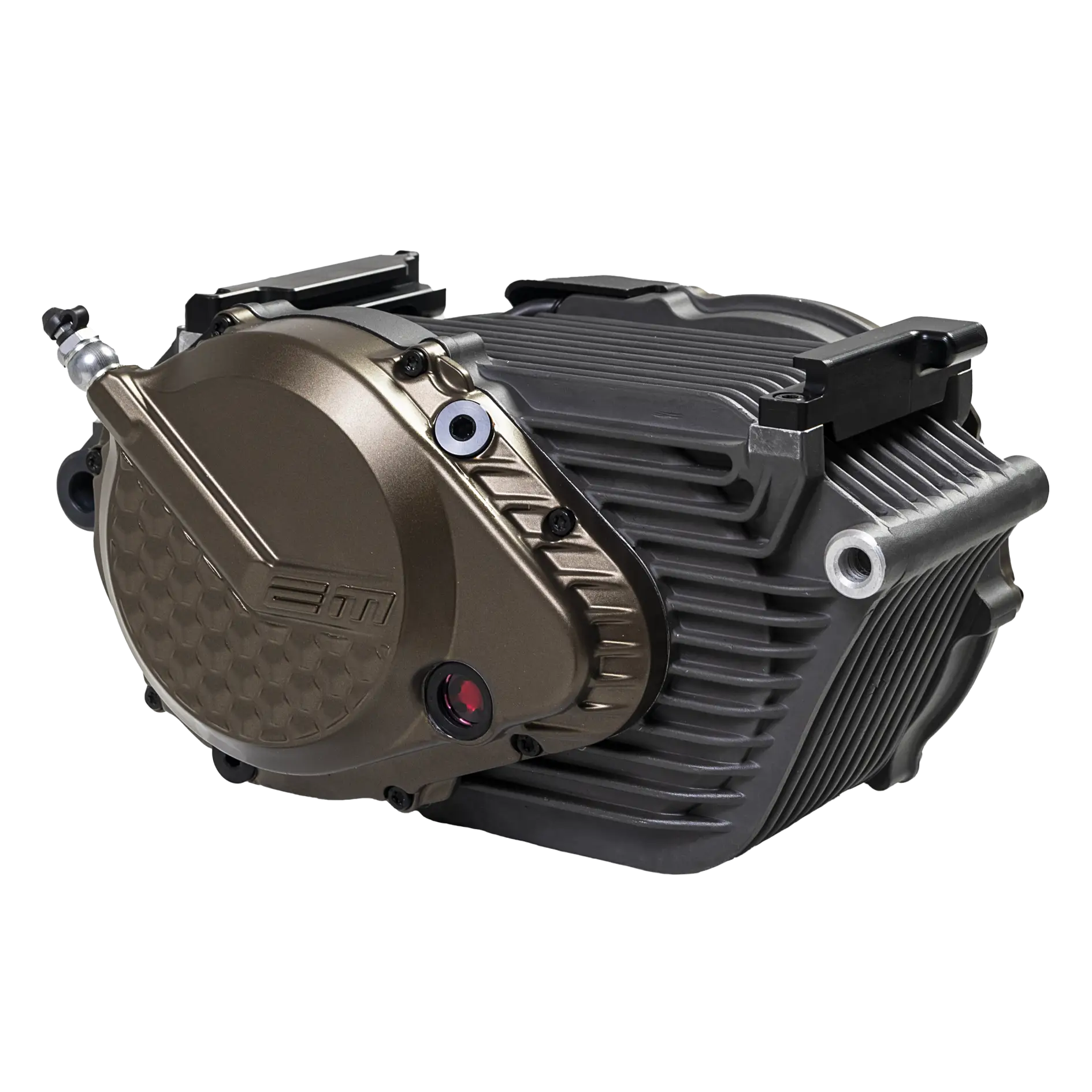

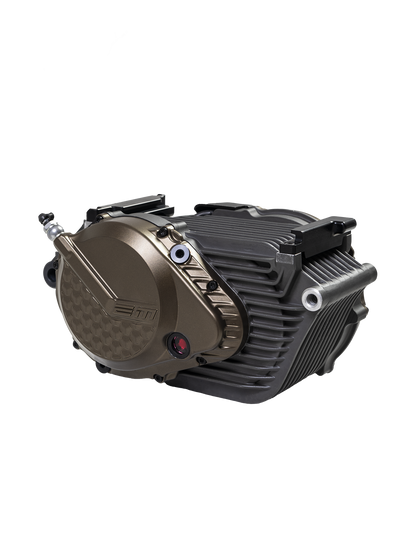

New engine by EM
The Epure FACTOR-e is equipped with a new powertrain designed 100% by EM. Innovative, it combines two technologies:
The advantage of an electric motor with instant low-end torque.
A power profile similar to a fuel bike, combining performance and driving pleasure.
This engine has an unmatched power-to-weight ratio (3.3kW/kg), an engine speed capable of reaching 14000rpm, power of up to 18kW, torque of 1400Nm in first gear, all in a specially designed oil pan to integrate this motor.
The high-performance rotor is surrounded by a carbon sleeve to hold the magnets in at extreme rotation speeds.
The air-cooling system has been designed to provide homogeneous and controlled heat dissipation.
Engine noise has been optimized to provide a very quiet and pleasant transmission, thanks to reduced friction.
Last but not least, the engine’s 40% extra inertia gain strongly enhances the roundness and power of the engine.
NOMINAL POWER: 6 Kw
PEAK POWER: 11 Kw

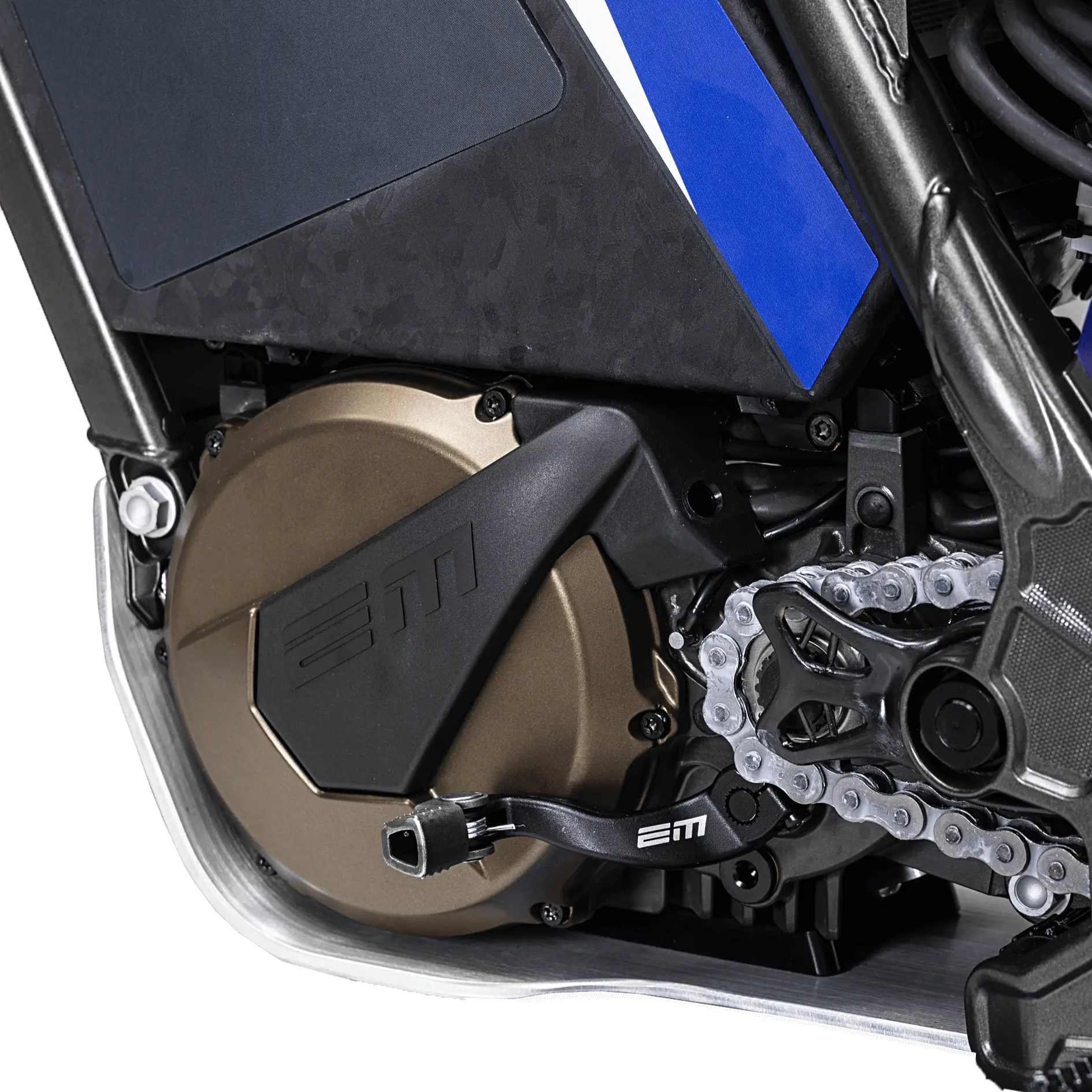

New gearbox
The 4-speed gearbox is an essential asset - not only for performance, but also for control and precision.This innovative gearbox allows the rider to adapt to the bike’s behaviour depending on the type of track, offering a versatile use:
1st (Trial): Trials sections with clear steps and obstacles, precision is essential and the bike becomes dynamic and reactive.
2nd (Natural Trial): The bike is more progressive, with more control and more grip in the obstacles, especially in the preparation before and after obstacles. Traction is accentuated, with a speed more suited to natural obstacles and/or long climbs.
3rd (Mixed): This gear has been designed for mixed use – for both trial and excursion. (We get the same behavior as our Epure Race model).
This gear is also ideal for beginners, who can get their marks without using the gearbox.
4th (Excursion): Ideal speed for riding between long lap trial sections and excursions thanks to its top speed and driving pleasure, allowing the rider to cruise at a comfortable speed on a trickle of throttle with appreciable mid to high rpm power whilst reducing power consumption.
New transmission
The huge acceleration capacity combined with the gearbox, offers infinite possibilities!
The Epure FACTOR-e is equipped with a new secondary transmission with 520 chain and a reinforced swing arm to subsist with the 1400Nm of torque.
Finally, the use of this gearbox also means lower energy consumption in fast use, efficiency being one of the priorities of this new propulsion unit.
The engine alone weights 5kg.
The propulsion unit, inertia, clutch, gearbox, sensors, oil pans, is 3kg lighter than our former propulsion unit.
New clutch
A new engine, gearbox, but also a new clutch.
Equipped with a triple-disc hydraulic diaphragm system, this new clutch gains in precision and responsiveness, and can handle the power and torque of the brand new engine.
New battery
Our previous-generation battery offered one of the best weight-to-range ratios. But at EM, we’re determined to maintain our technological lead with this new battery, developed in France at our factory.
The latest Li-Ion technology has been integrated by our R&D teams, along with a new PCB + Bus-bar connection system.
All the software has been improved for more safety, longevity and performance.
New casing, new side protection, new charging socket, new waterproof quick connectors, new "battery swap" system... everything has been redesigned and revised to ensure the best performance, final touches and durability.
Suspensions
The new TECH shock used by the best riders in the world, developed by Marc COLOMER and approved by Gael CHATAGNO is installed on the Epure FACTOR-e.
This shock provides optimized traction and precise rear-end feeling.
It comes with two settings, one for rebound adjustment (24 clicks), and one for spring preload (from 1mm to 10mm max).
The whole suspension system has been redesigned in line with the new weight and weight distribution.

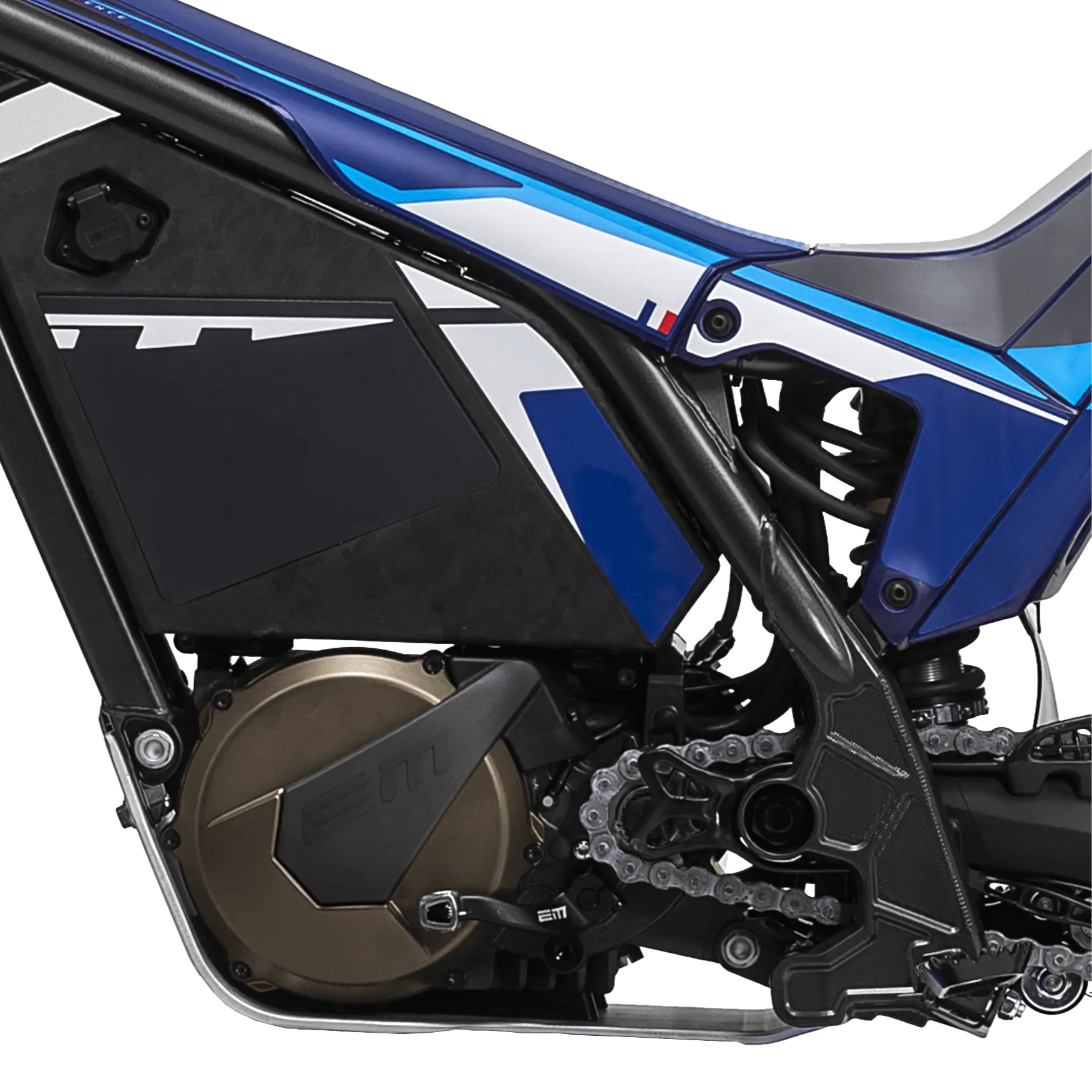

Frame
Our specialist team also worked on the frame for the new Epure FACTOR-e. The steering-column assembly has been redesigned and stiffened to further enhance steering precision and the triple clamps have new offsets for a more dynamic front end.
Discover Factor E
Technical Details
Technical sheet
FRAME: 25CD4S
FRONT BRAKES: 182mm disc w/4 piston
REAR BRAKES: 150mm disc w/2 piston
FRONT RIM: Morad Trial 1,6 "x21"
REAR RIM: Morad Trial 2,15 "x18"
TYRES: MICHELIN X11
FRONT SUSPENSIONS: Aluminium TECH RACING Fork
FRONT SUSPENSIONS TRAVEL: 75 mm
REAR SUSPENSIONS: TECH suspension TJ2
Battery
ENERGY: Li-ion
VOLTAGE: 50,4 V
CAPACITY: 1800 Wh - 2500 Wh
WEIGHT: 11 kg - 13kg
CHARGER: 15 A
CHARGING TIME: 2H30 - 3H15
MINI CHARGING TEMPERATURE: 0°C
Engine
NOMINAL POWER: 5 Kw
PEAK POWER: 18 Kww
Dimensions
SEAT HEIGHT: 670 mm
WHEEL BASE: 1325 mm
GROUND CLEARANCE: 320 mm
FOOTREST HEIGHT: 360 mm
WIDTH: 825 mm
Maps
MAPS: 3 (unlimited)
Series equipment
FRB
TKO
EM Connect
Charger case
TFT Display
Flywheel
Antireverse
Options
PRB R
25A Charger (2h45) - 2.5kWh Battery
25A Charger (2h15) - 1.8kWh Battery
EM Handguard
